WDMA Aluminum 400 Series - Classic Thermal Break Aluminum Windows and Doors

Aluminum 400 Series Profile Europe Standard 6063 T5 Thermal Break Aluminum Profile Thickness 1.6mm, Max 2.0mm Powder Coating, Customized Color Available Energy Efficient Advanced PA66+GF Insulate Strip, Thickness 24mm Advanced EPMD + Foamed Composite Strip---30 years warranty 6mm+20Ar+6mm or 5mm+12Ar+5mm+12Ar+5mm Fully Tempered Insulated Glass Low-e Coating Supper Warm Edge Spacer...

Effective Price :

Request A Quote

Quantity :

Brand : China Windows and Doors Manufacturers Association

Product Type :

	Aluminum 400 Series

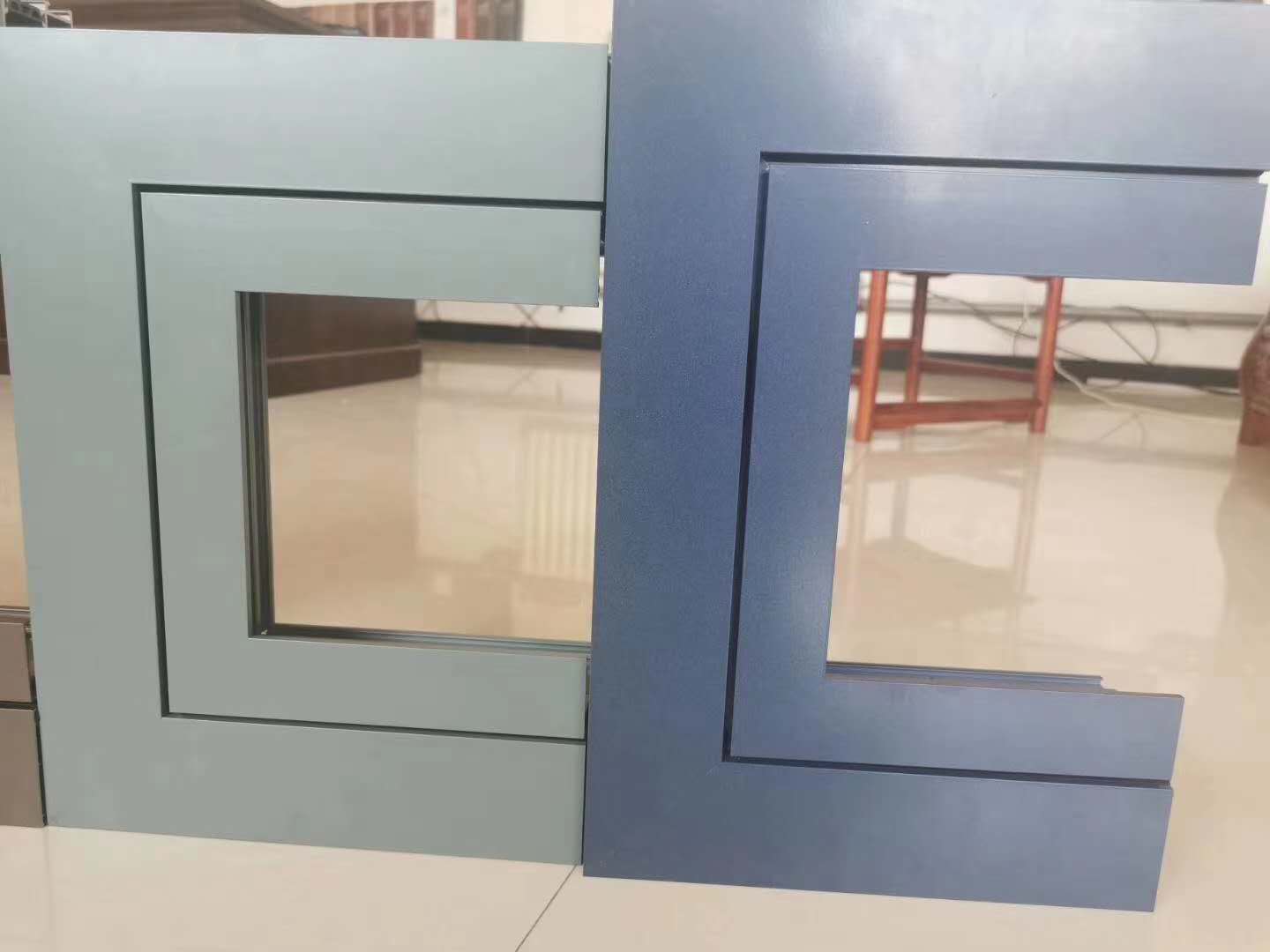

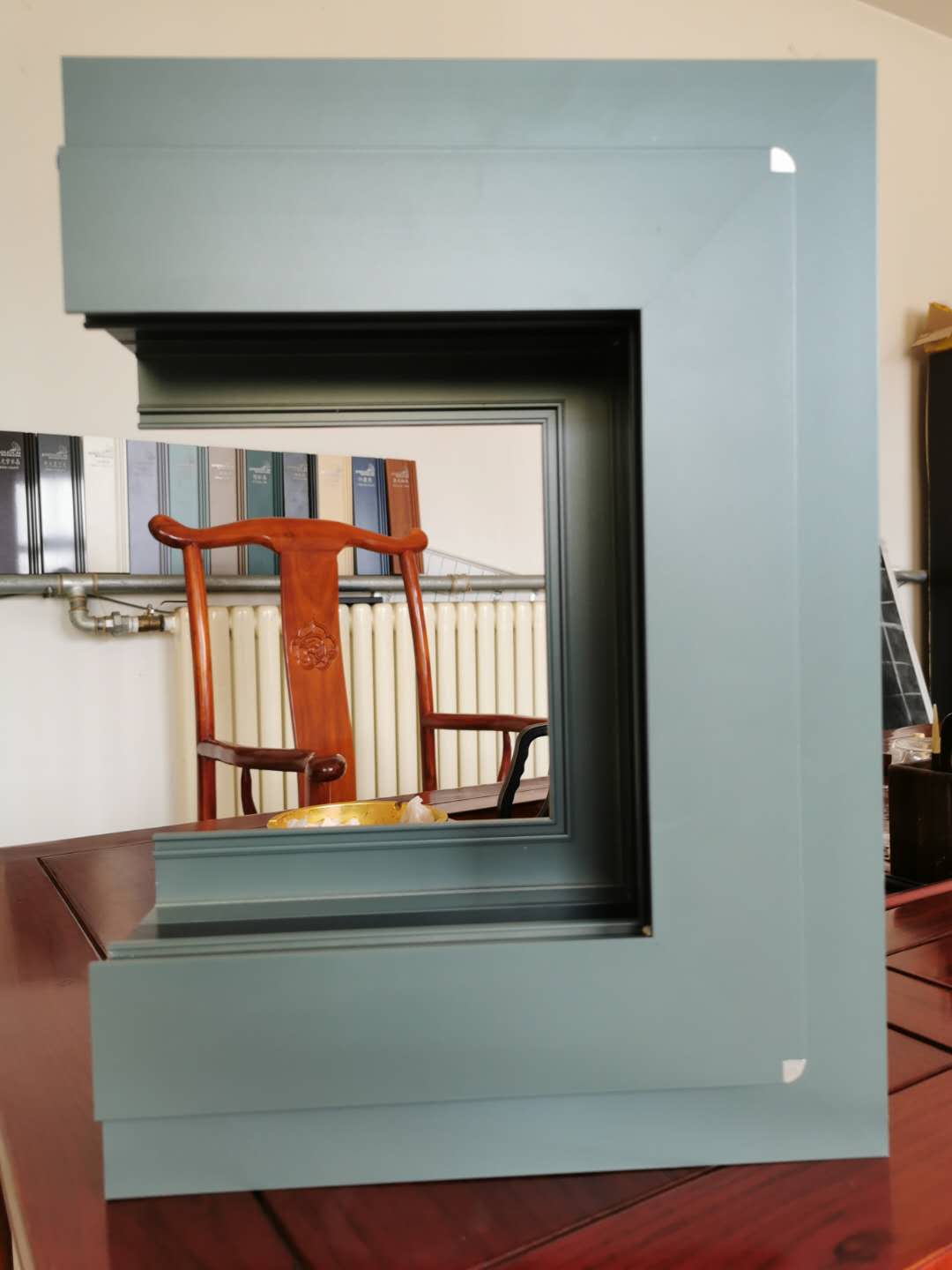

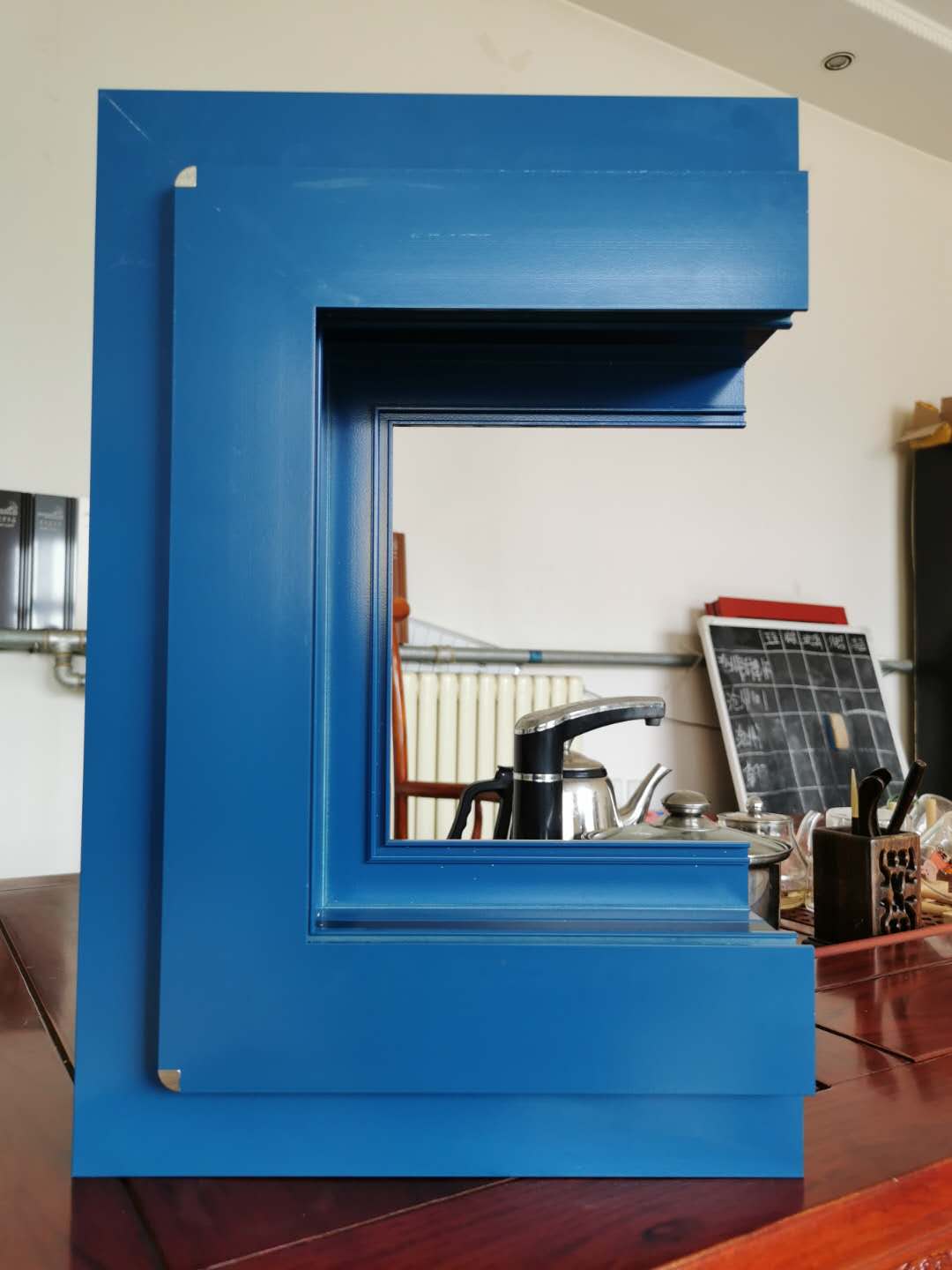

Profile	Europe Standard 6063 T5 Thermal Break Aluminum
	Profile Thickness 1.6mm, Max 2.0mm

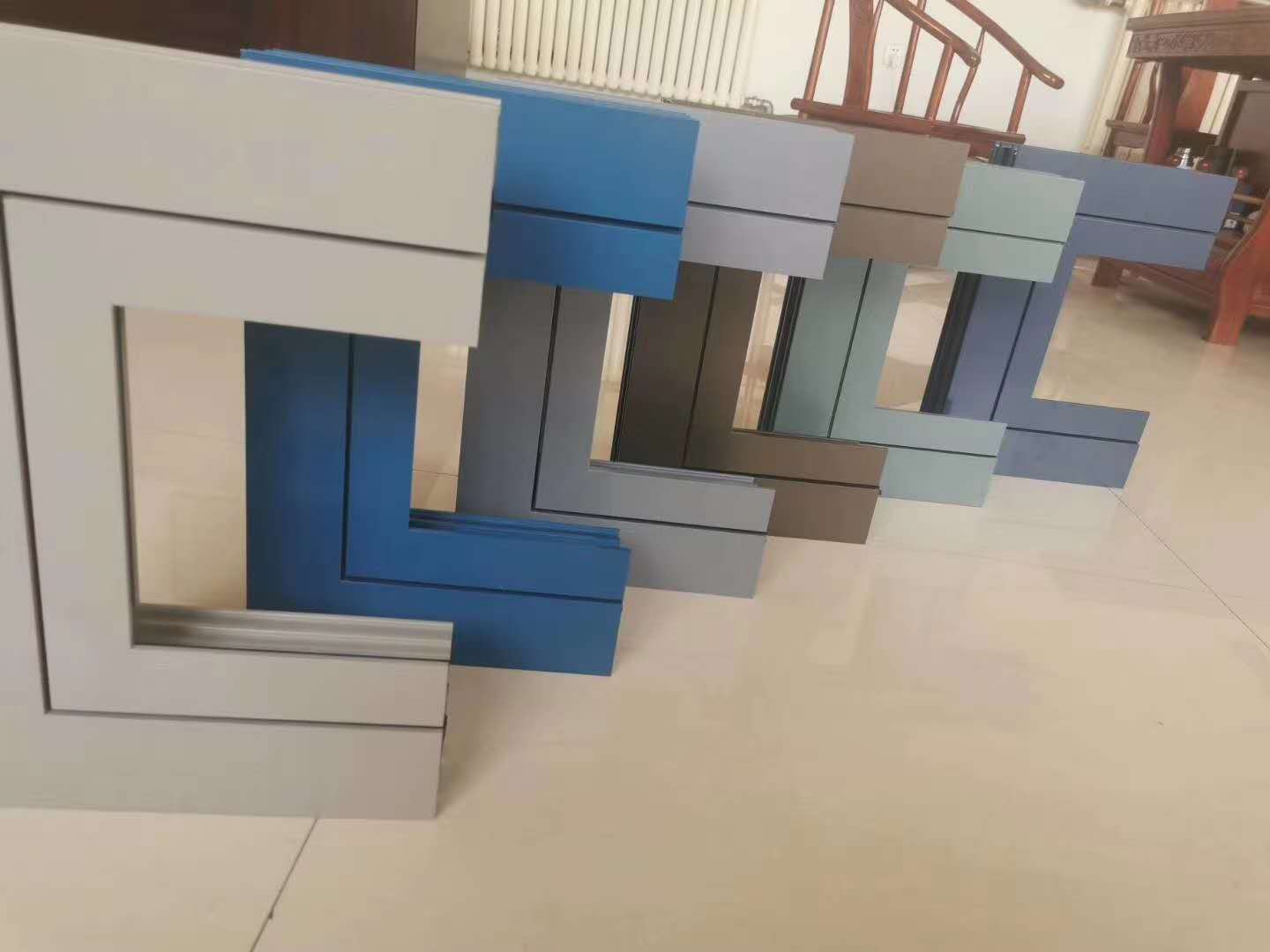

	Powder Coating, Customized Color Available

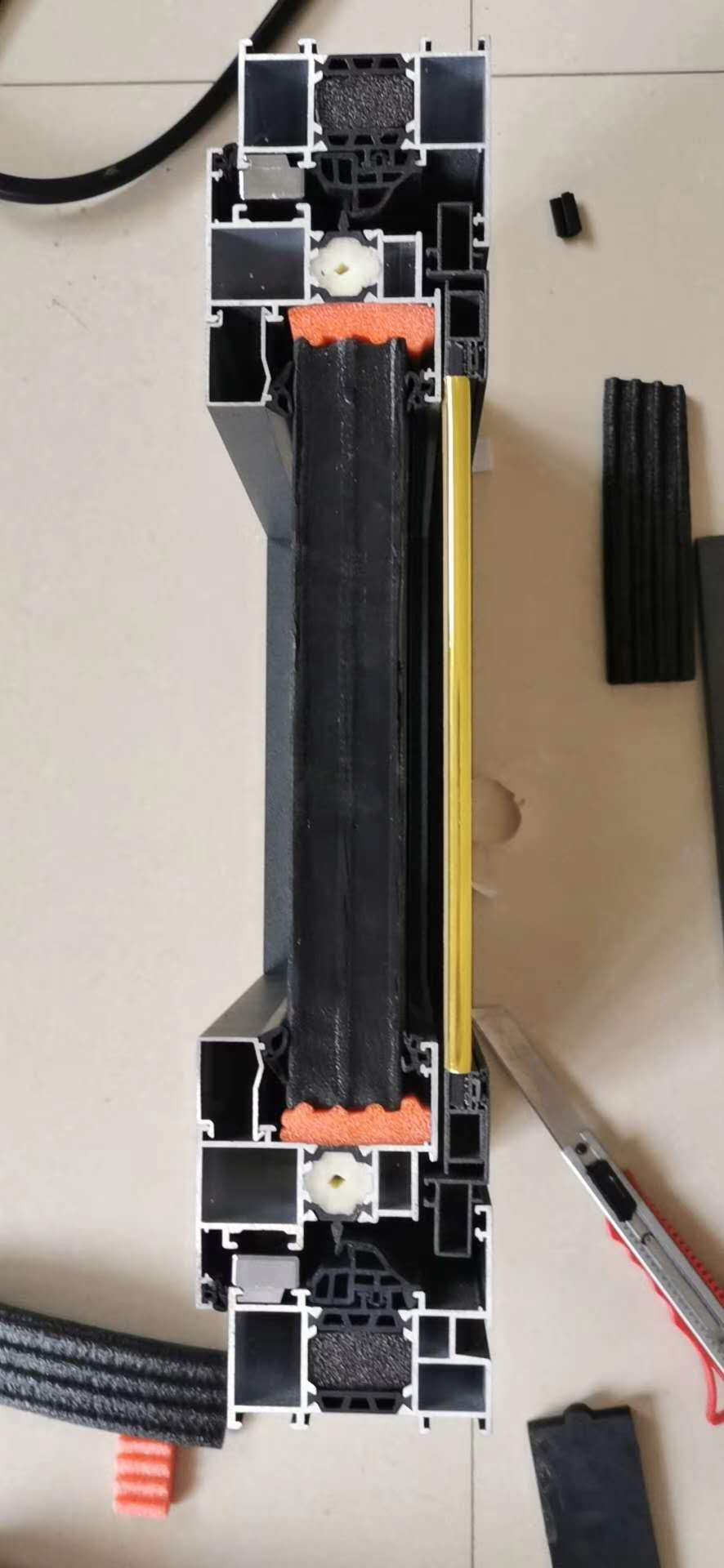

Energy Efficient	Advanced PA66+GF Insulate Strip, Thickness 24mm
	Advanced EPMD + Foamed Composite Strip---30 years warranty
	6mm+20Ar+6mm or 5mm+12Ar+5mm+12Ar+5mm Fully Tempered Insulated Glass
	Low-e Coating
	Supper Warm Edge Spacer

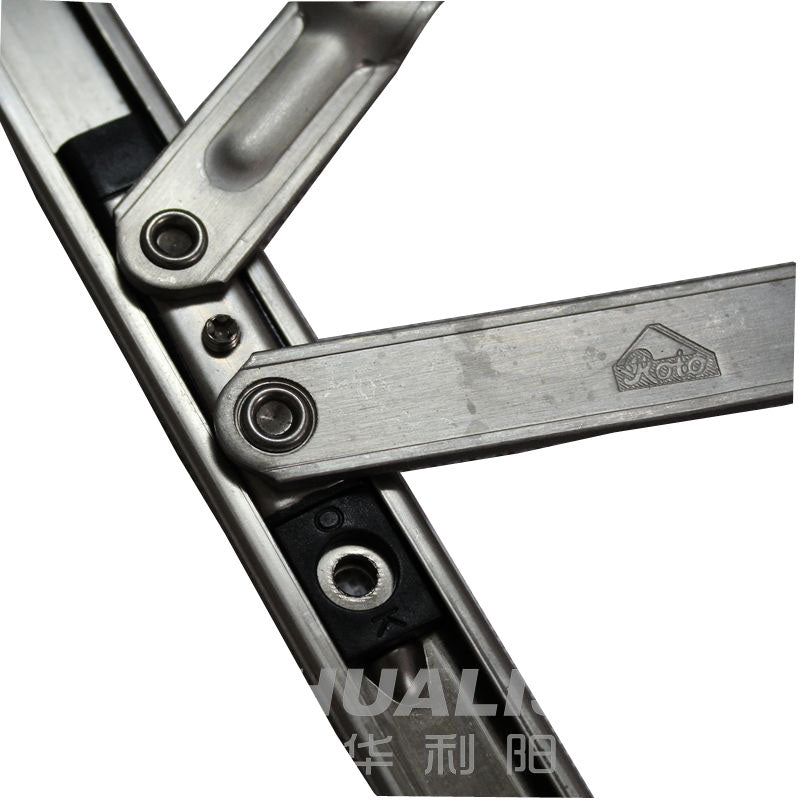

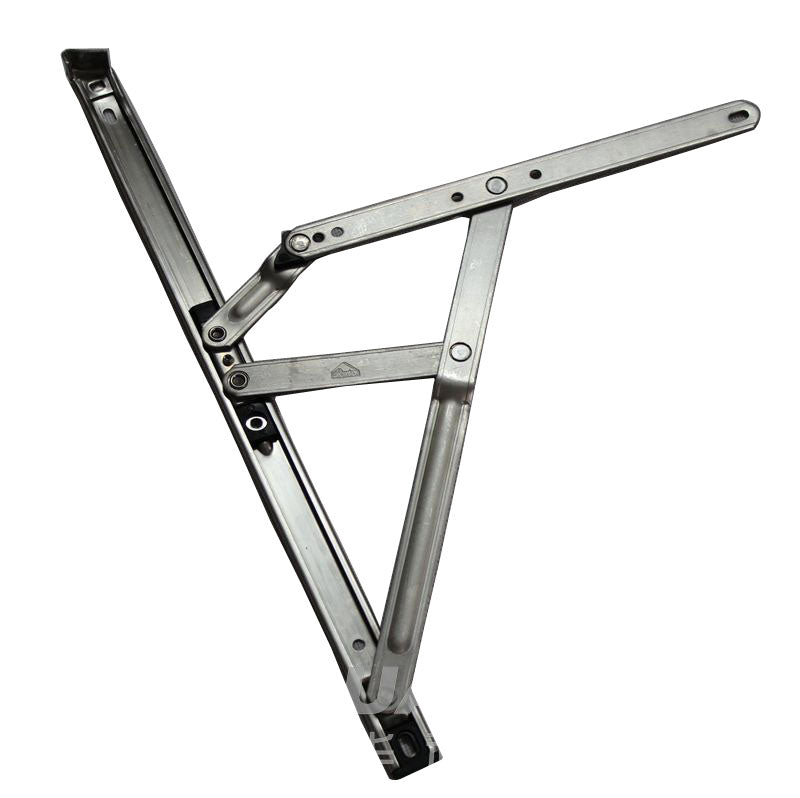

Hardware	Top German Brand Hardware
Screen	Fix Screen（Stainless Setell）
Open Type	Casement, Push out Casement, Tilt and Turn, Picture
Performance	U-factor: Double Glazing 0.28 / Triple Glass 0.22 (Btu/ft² • hr • F°)
	SHGC：0.23-0.55(Adjustable by Low-e Glass)
	35dB-40dB
	Visible Transmittance：0.48-0.64
	Air Leakage:＜0.2 cf • m/ft²
